Oracle 10g Tutorials -Creating Index-Organized Tables

Oracle 10g Free Training - Creating Index-Organized Tables

Let us learn about Creating Index-Organized Tables by Creating an Index-Organized Table, further by Creating Index-Organized Tables that Contain Object Types and also you will learn how to View Information about Tables.

Creating Index-Organized Tables

You use the CREATE TABLE statement to create index-organized tables, but you must provide additional information:

An ORGANIZATION INDEX qualifier, which indicates that this is an index-organized table

A primary key, specified through a column constraint clause (for a single column primary key) or a table constraint clause (for a multiple-column primary key).

Optionally, you can specify the following:

• An OVERFLOW clause, which preserves dense clustering of the B-tree index by storing the row column values exceeding a specified threshold in a separate overflow data segment.
  .
• A PCTTHRESHOLD value, which defines the percentage of space reserved in the index block for an index-organized table. Any portion of the row that exceeds the specified threshold is stored in the overflow segment. In other words, the row is broken at a column boundary into two pieces, a head piece and tail piece. The head piece fits in the specified threshold and is stored along with the key in the index leaf block. The tail piece is stored in the overflow area as one or more row pieces. Thus, the index entry contains the key value, the nonkey column values that fit the specified threshold, and a pointer to the rest of the row.
  .
• An INCLUDING clause, which can be used to specify nonkey columns that are to be stored in the overflow data segment.

Creating an Index-Organized Table

The following statement creates an index-organized table:

CREATE TABLE admin_docindex(
token char(20),
doc_id NUMBER,
token_frequency NUMBER,
token_offsets VARCHAR2(512),
CONSTRAINT pk_admin_docindex PRIMARY KEY (token, doc_id))
ORGANIZATION INDEX
TABLESPACE admin_tbs
PCTTHRESHOLD 20
OVERFLOW TABLESPACE admin_tbs2;

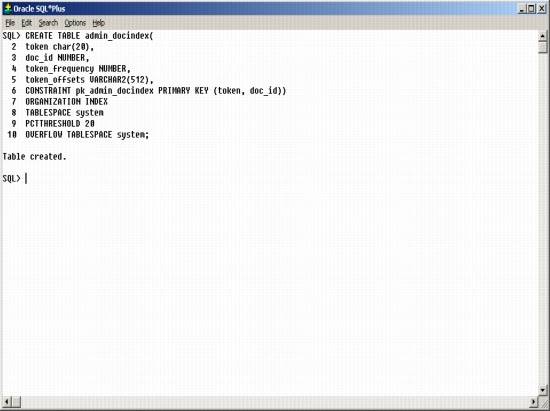

Figure 12. Creating Index organized table

Specifying ORGANIZATION INDEX causes the creation of an index-organized table, admin_docindex, where the key columns and nonkey columns reside in an index defined on columns that designate the primary key or keys for the table. In this case, the primary keys are token and doc_id. An overflow segment is specified and is discussed in "Using the Overflow Clause ".

Creating Index-Organized Tables that Contain Object Types

Index-organized tables can store object types. The following example creates object type admin_typ, then creates an index-organized table containing a column of object type admin_typ:

CREATE OR REPLACE TYPE admin_typ AS OBJECT
(col1 NUMBER, col2 VARCHAR2(6));

CREATE TABLE admin_iot (c1 NUMBER primary key, c2 admin_typ)
ORGANIZATION INDEX;

You can also create an index-organized table of object types. For example:

CREATE TABLE admin_iot2 OF admin_typ (col1 PRIMARY KEY)
ORGANIZATION INDEX;

Another example, that follows, shows that index-organized tables store nested tables efficiently. For a nested table column, the database internally creates a storage table to hold all the nested table rows.

CREATE TYPE project_t AS OBJECT(pno NUMBER, pname VARCHAR2(80));
/

CREATE TYPE project_set AS TABLE OF project_t;
/

CREATE TABLE proj_tab (eno NUMBER, projects PROJECT_SET)
NESTED TABLE projects STORE AS emp_project_tab
((PRIMARY KEY(nested_table_id, pno))
ORGANIZATION INDEX)
RETURN AS LOCATOR;

The rows belonging to a single nested table instance are identified by a nested_table_id column. If an ordinary table is used to store nested table columns, the nested table rows typically get de-clustered. But when you use an index-organized table, the nested table rows can be clustered based on the nested_table_id column.

Viewing Information About Tables

The following views allow you to access information about tables

View	Description
DBA_TABLES ALL_TABLES USER_TABLES	DBA view describes all relational tables in the database. ALL view describes all tables accessible to the user. USER view is restricted to tables owned by the user. Some columns in these views contain statistics that are generated by the DBMS_STATS package or ANALYZE statement.
DBA_TAB_COLUMNS ALL_TAB_COLUMNS USER_TAB_COLUMNS	These views describe the columns of tables, views, and clusters in the database. Some columns in these views contain statistics that are generated by the DBMS_STATS package or ANALYZE statement.
DBA_ALL_TABLES ALL_ALL_TABLES USER_ALL_TABLES	These views describe all relational and object tables in the database. Object tables are not specifically discussed in this book.
DBA_TAB_COMMENTS ALL_TAB_COMMENTS USER_TAB_COMMENTS	These views display comments for tables and views. Comments are entered using the COMMENT statement.
DBA_COL_COMMENTS ALL_COL_COMMENTS USER_COL_COMMENTS	These views display comments for table and view columns. Comments are entered using the COMMENT statement.
DBA_EXTERNAL_TABLES ALL_EXTERNAL_TABLES USER_EXTERNAL_TABLES	These views list the specific attributes of external tables in the database.
DBA_EXTERNAL_LOCATIONS ALL_EXTERNAL_LOCATIONS USER_EXTERNAL_LOCATIONS	These views list the data sources for external tables.
DBA_TAB_HISTOGRAMS ALL_TAB_HISTOGRAMS USER_TAB_HISTOGRAMS	These views describe histograms on tables and views.
DBA_TAB_COL_STATISTICS ALL_TAB_COL_STATISTICS USER_TAB_COL_STATISTICS	These views provide column statistics and histogram information extracted from the related TAB_COLUMNS views.
DBA_TAB_MODIFICATIONS ALL_TAB_MODIFICATIONS USER_TAB_MODIFICATIONS	These views describe tables that have been modified since the last time table statistics were gathered on them. They are not populated immediately, but after a time lapse (usually 3 hours).
DBA_UNUSED_COL_TABS ALL_UNUSED_COL_TABS USER_UNUSED_COL_TABS	These views list tables with unused columns, as marked by the ALTER TABLE ... SET UNUSED statement.
DBA_PARTIAL_DROP_TABS ALL_PARTIAL_DROP_TABS USER_PARTIAL_DROP_TABS	These views list tables that have partially completed DROP COLUMN operations. These operations could be incomplete because the operation was interrupted by the user or a system failure.

Example: Displaying Column Information

Column information, such as name, datatype, length, precision, scale, and default data values can be listed using one of the views ending with the _COLUMNS suffix. For example, the following query lists all of the default column values for the emp and dept tables:

SELECT TABLE_NAME, COLUMN_NAME, DATA_TYPE, DATA_LENGTH, LAST_ANALYZED FROM DBA_TAB_COLUMNS
WHERE OWNER = 'SYSTEM’
ORDER BY TABLE_NAME;

The following is the output from the query:

TABLE_NAME	COLUMN_NAME	DATA_TYPE	DATA_LENGTH	LAST_ANALYZED
COUNTRIES	COUNTRY_ID	CHAR	2	05-FEB-03
COUNTRIES	COUNTRY_NAME	VARCHAR2	40	05-FEB-03
COUNTRIES	REGION_ID	NUMBER	22	05-FEB-03
DEPARTMENTS	DEPARTMENT_ID	NUMBER	22	05-FEB-03
DEPARTMENTS	DEPARTMENT_NAME	VARCHAR2	30	05-FEB-03
DEPARTMENTS	MANAGER_ID	NUMBER	22	05-FEB-03
DEPARTMENTS	LOCATION_ID	NUMBER	22	05-FEB-03
EMPLOYEES	EMPLOYEE_ID	NUMBER	22	05-FEB-03
EMPLOYEES	FIRST_NAME	VARCHAR2	20	05-FEB-03
EMPLOYEES	LAST_NAME	VARCHAR2	25	05-FEB-03
EMPLOYEES	EMAIL	VARCHAR2	25	05-FEB-03
.
.
.
LOCATIONS	COUNTRY_ID	CHAR	2	05-FEB-03
REGIONS	REGION_ID	NUMBER	22	05-FEB-03
REGIONS	REGION_NAME	VARCHAR2	25	05-FEB-03

51 rows selected.
